Ciphers 120 and 75 gallon DIY LED builds

Discussion in 'General Discussion' started by Cipher43, Feb 23, 2012.

  1. Cipher43

    Cipher43

    65
    Ratings:
    +0 / 0 / -0

    As the title says I have plans for building lights for my new 120 gallon and my parents new 75 gallon tank.  Here is what Ive orderd.





    My 120s light





    2 -   8.5X16 Heatsinks from Heatsinkusa.com


    24 - XP-G R5 Cree Cool Whites


    12 - XP-G Cree Neutral Whites


    24 - XP-E Cree Royal  Blues


    12 - XP-E Cree Blues


    6 -  Osram 660nm reds


    6-   Cree XP-E Greens


    4/8- 1W  Royal blue Moonlights



    2 HLG 150H-48B  (from Jameco.com)



    1 ELN 60-48P (for the greens and reds)





    Their 75s light








    2 -   6X16 Heatsinks from Heatsinkusa.com


    16 - XP-G R5 Cree Cool Whites


    8 - XP-G Cree Neutral Whites


    16 - XP-E Cree Royal  Blues


    8 - XP-E Cree Blues


    4-  Osram 660nm reds


    4-  Cree XP-E Greens


    4   1W  Royal blue Moonlights



    2 ELN 60-48P



    1 ELN 60-48P( for reds and greens)





    All lights and the ELNs orderd from rapidled.com








    Also planning on getting a controller for each of the builds but am gonna hold off for awhile and see what I find.

  2. mxrcr

    mxrcr

    74
    Ratings:
    +10 / 0 / -0

    watching this one. im on the fence between halides and leds. if you dont mind me asking, what was the appoximate cost for the 75 gallon setup.
    Also. I  Just got a Neptune apex and I love it. Its ready to go for dimming led's with the variable speed ports.






  3. Cipher43

    Cipher43

    65
    Ratings:
    +0 / 0 / -0
    Well as you can see I have been absent for quite some time. I did get the lights all done and will post up some pics of how they turned out.

  4. Pete H.

    Pete H. Well-Known ReefKeeper

    853
    Ratings:
    +0 / 0 / -0
    Looking forward to some photos.

  5. Cipher43

    Cipher43

    65
    Ratings:
    +0 / 0 / -0
    test pic


    [​IMG]

  6. Cipher43

    Cipher43

    65
    Ratings:
    +0 / 0 / -0
    OK so finally got the pictures loaded on Photobucket so here we go.

    [​IMG]


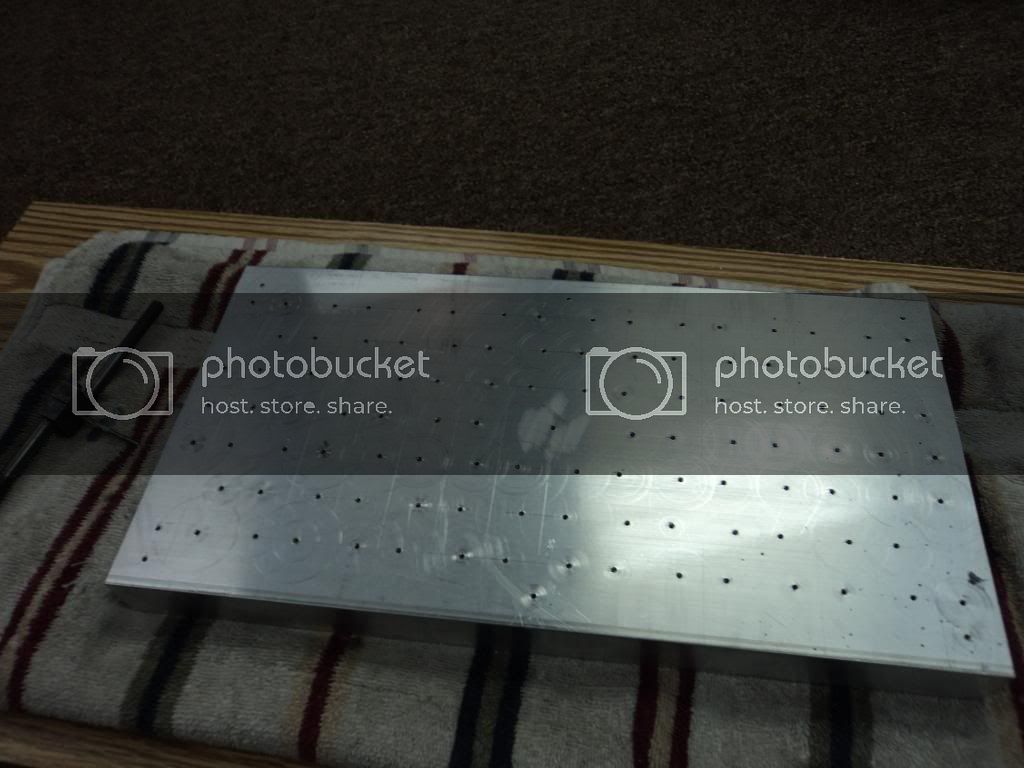

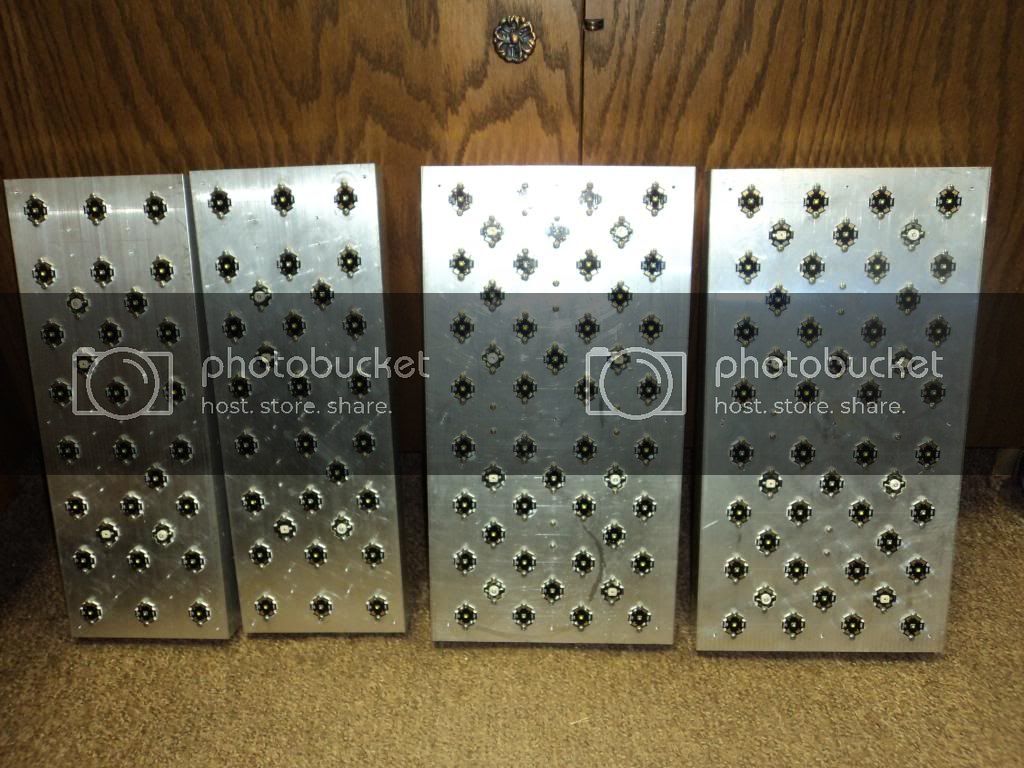

    I drilled and tapped each hole

    [​IMG]

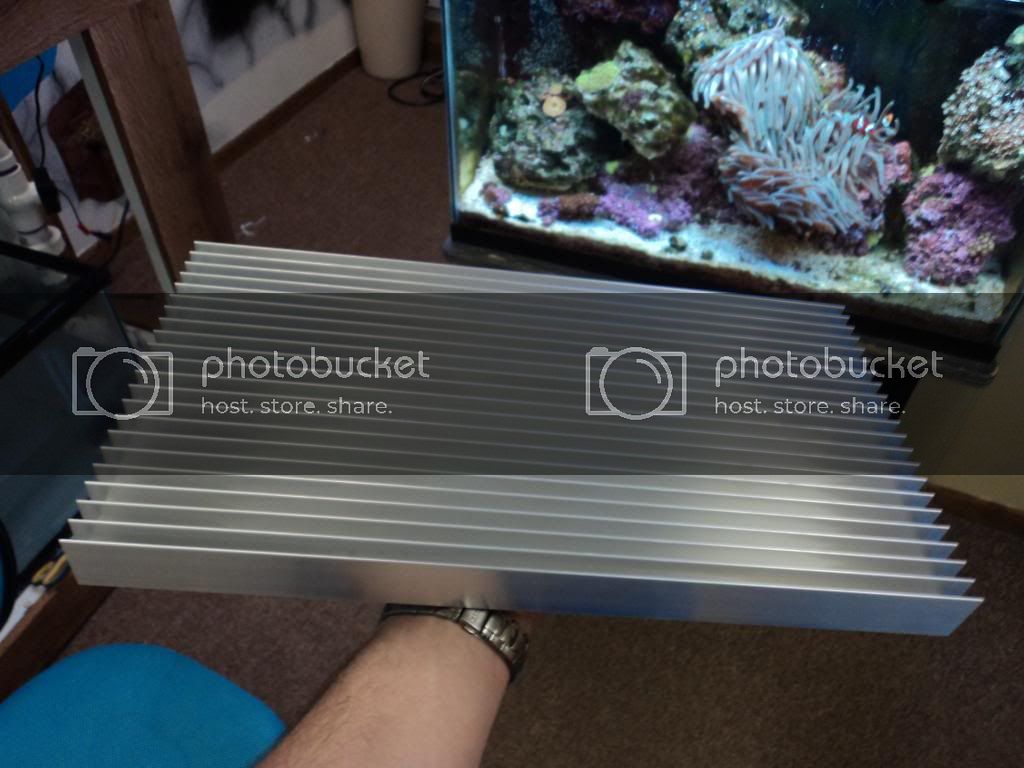

    After placing all LEDs in place. My 120s lights have space for 4 more LEDs per side and the 75 has room for 6 more if I want or need to add more later .


    [​IMG]


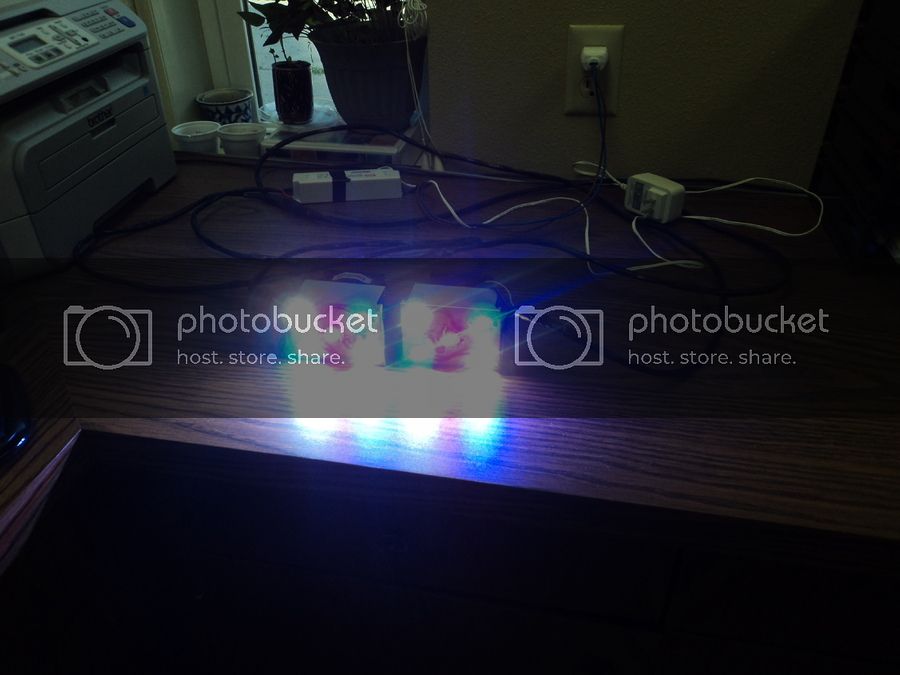

    First test fire of just the blues and whites. This was with only 1/2 of the power.[​IMG]


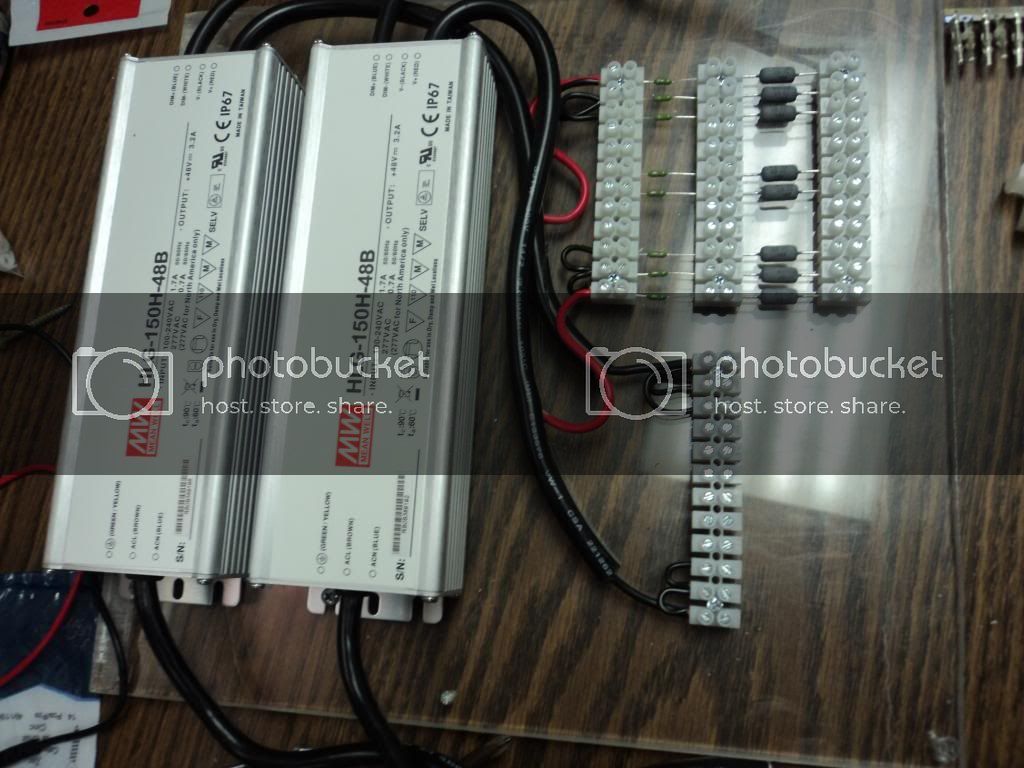

    All of my drivers and stuff were mounted to a piece of an acrylic tank I had laying around

    [​IMG]


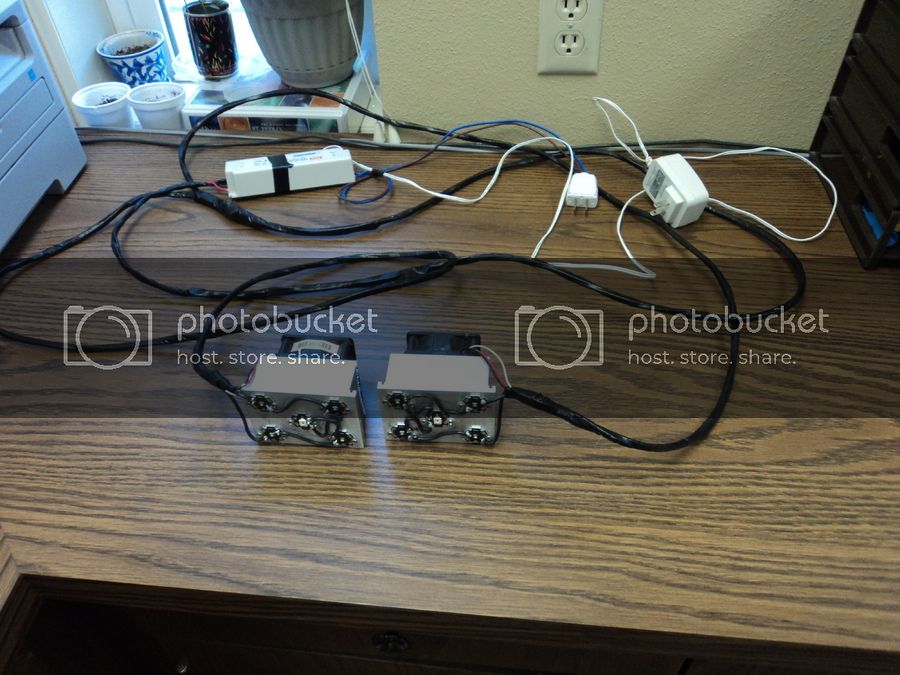

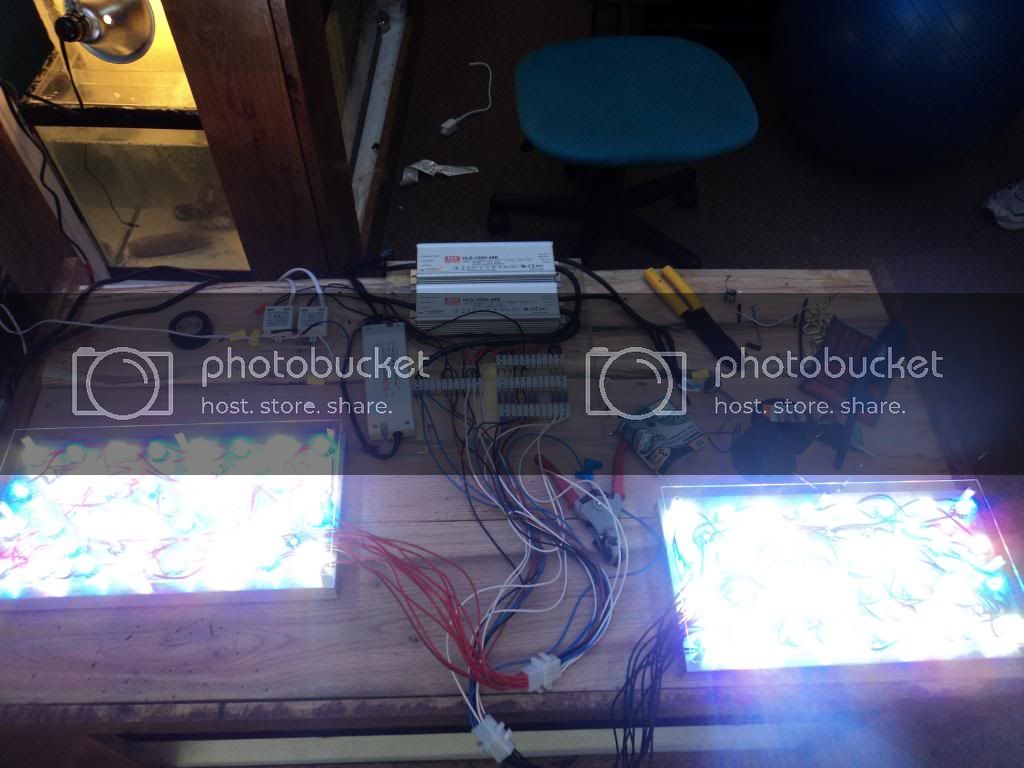

    Lights with blues, whites, greens, and reds all hooked up and on 1/2 power


    [​IMG]


    after taping up all the wires and getting them mounted in the hood we tested just the blues and whites at 25% power


    [​IMG]


    here is 40% power with the whites, blues, greens and reds

    [​IMG]


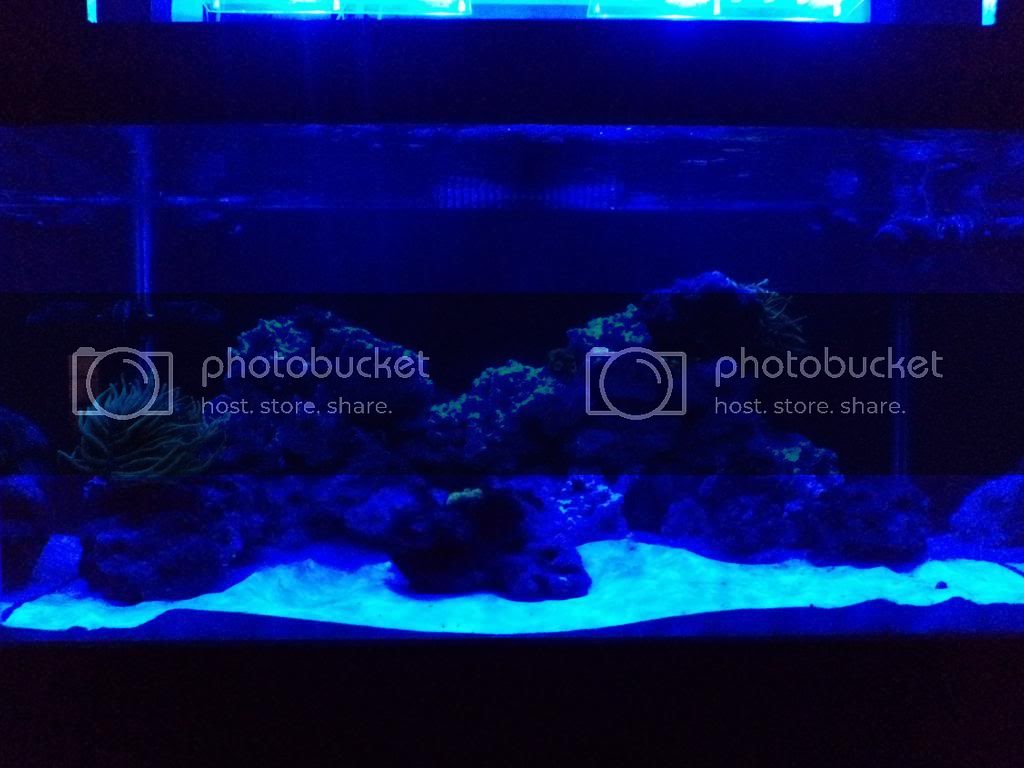

    and moonlights only

    [​IMG]














  7. Cipher43

    Cipher43

    65
    Ratings:
    +0 / 0 / -0
    And here are some photos of the corals I have in the tank and the growth they have had. the first one is from right after I bought the corals from one of the guys on here in June and the second is now..... I will add that these are after I have fragged a few of the corals to give to my parents. This is the first time I have looked at the 2 photos and I cant believe how much they have all grown!


    *EDIT* found this pic which shows the whole tank. Enjoy

    June 2012

    [​IMG]



    January 2013

    [​IMG]

  8. danmgray Well-Known ReefKeeper

    307
    Sioux City, IA
    Ratings:
    +26 / 0 / -0
    That is some nice looking work! How high are your lights above the water and what power (or current) do you have running your LEDs?

  9. Cipher43

    Cipher43

    65
    Ratings:
    +0 / 0 / -0

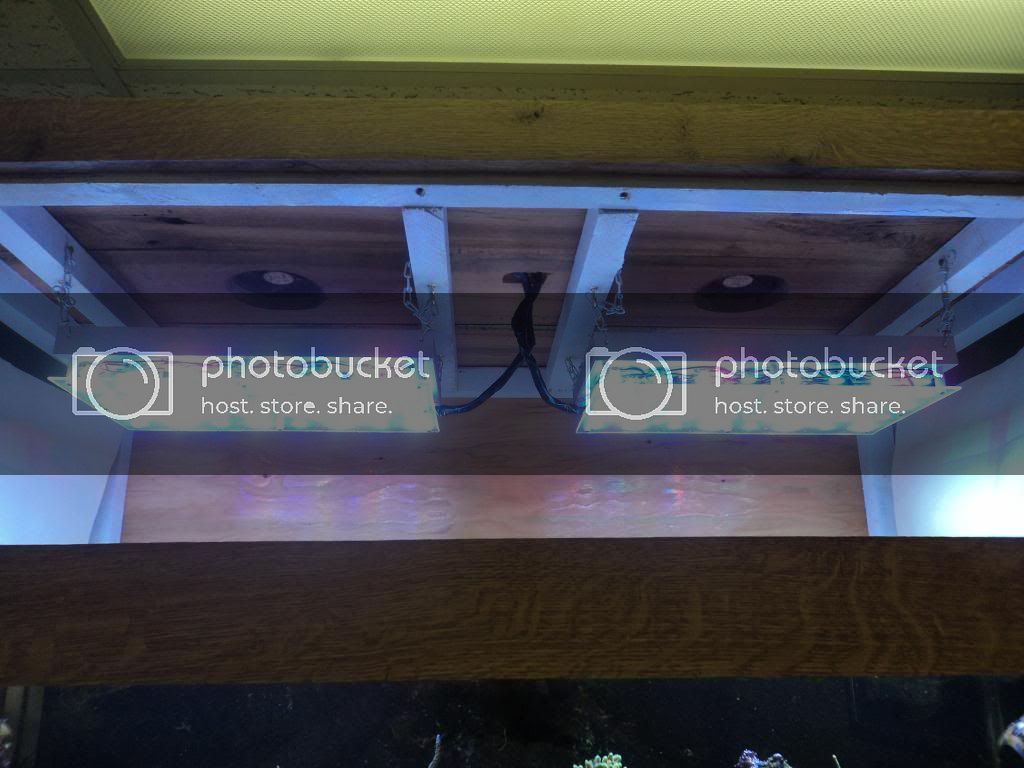

    I took a pic of how my lights are hung. They are 12.5 inches above the water. power is at 750 I think. been awhile since i checked. You can also see my fan system above then cut into the topper. I didn't want the fans attached to the heatsink themselves so this will work better bringing new air into the topper. The total cost for both 120 and 75 gallon tanks lights were 700 bucks if I remember right. The ones for my tank were around 450 because of the bigger heatsinks and bigger drivers. I still need to get a controller made but haven't taken the time yet.


    [​IMG]

  10. Big John

    Big John Inactive User

    966
    Ratings:
    +0 / 0 / -0
    Are you for hire Greg?!

  11. Cipher43

    Cipher43

    65
    Ratings:
    +0 / 0 / -0
    HAHA I would think about doing things like that but I probably shouldn't take on another project before I finish the doors for my stand....

  12. Big John

    Big John Inactive User

    966
    Ratings:
    +0 / 0 / -0
    They look very nice and professional.

  13. Cipher43

    Cipher43

    65
    Ratings:
    +0 / 0 / -0
    Thanks for the complement.


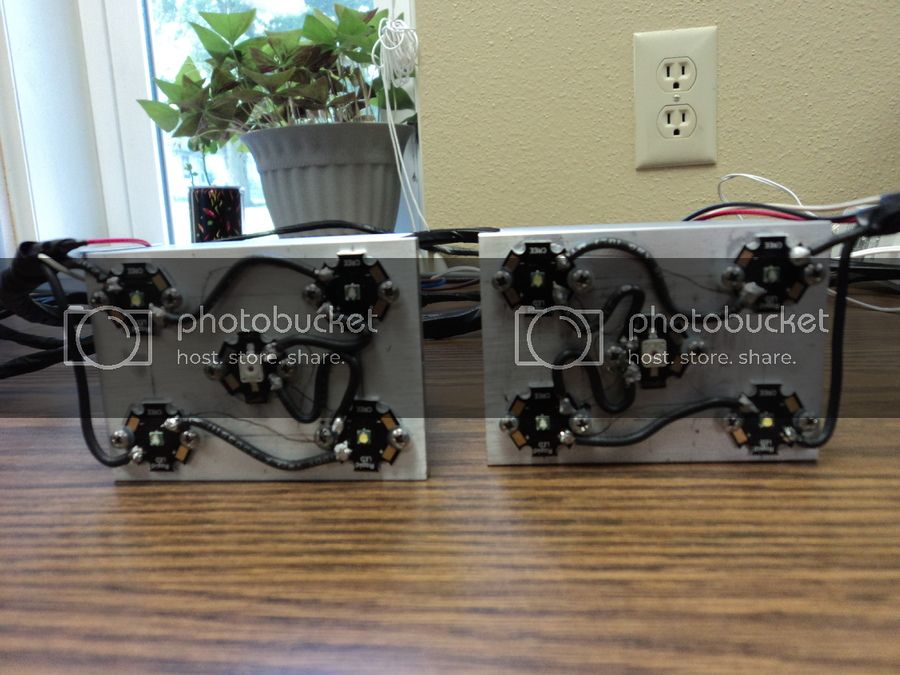

    Thought I would also post a pic of the algae scrubber lights I built for my tank. I went to a local computer parts store and asked if they had any old junk cpu heatsinks they wanted rid of and found 4 that were perfect for the job. Then with some of the extra lights left over after my big tanks build I used them. I drilled and tapped the holes for these also. If I ever have an issue with them I will put more red in them but so far I collect around a Cup and a half off my screen each week.


    [​IMG]


    [​IMG]


    [​IMG]



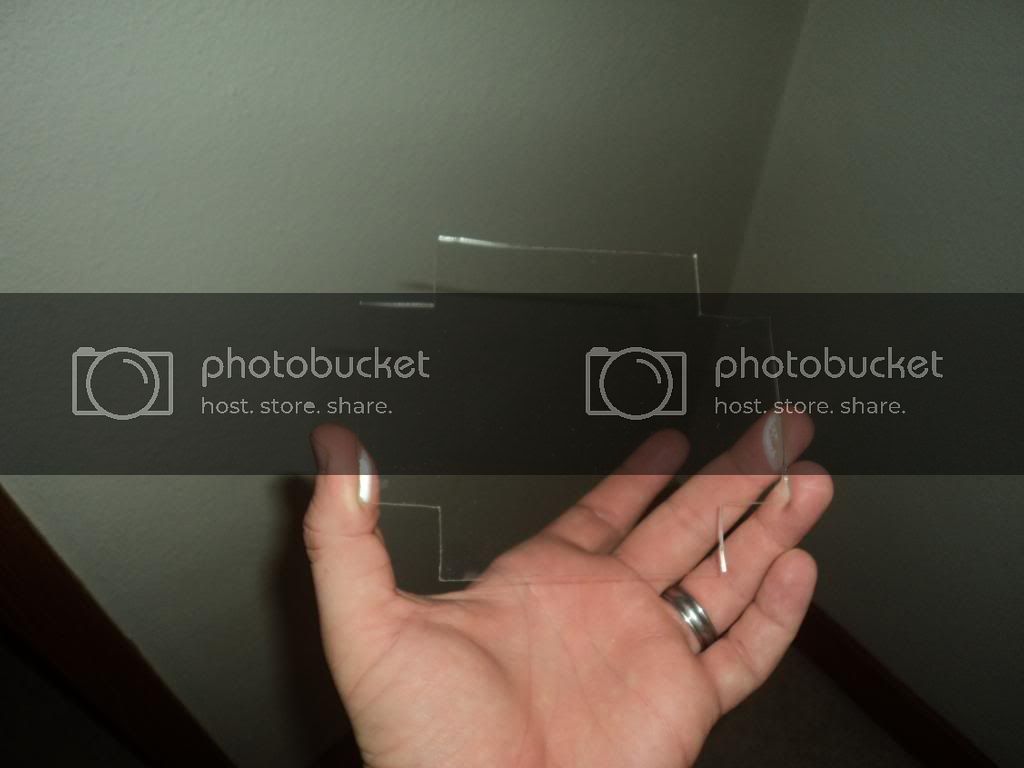

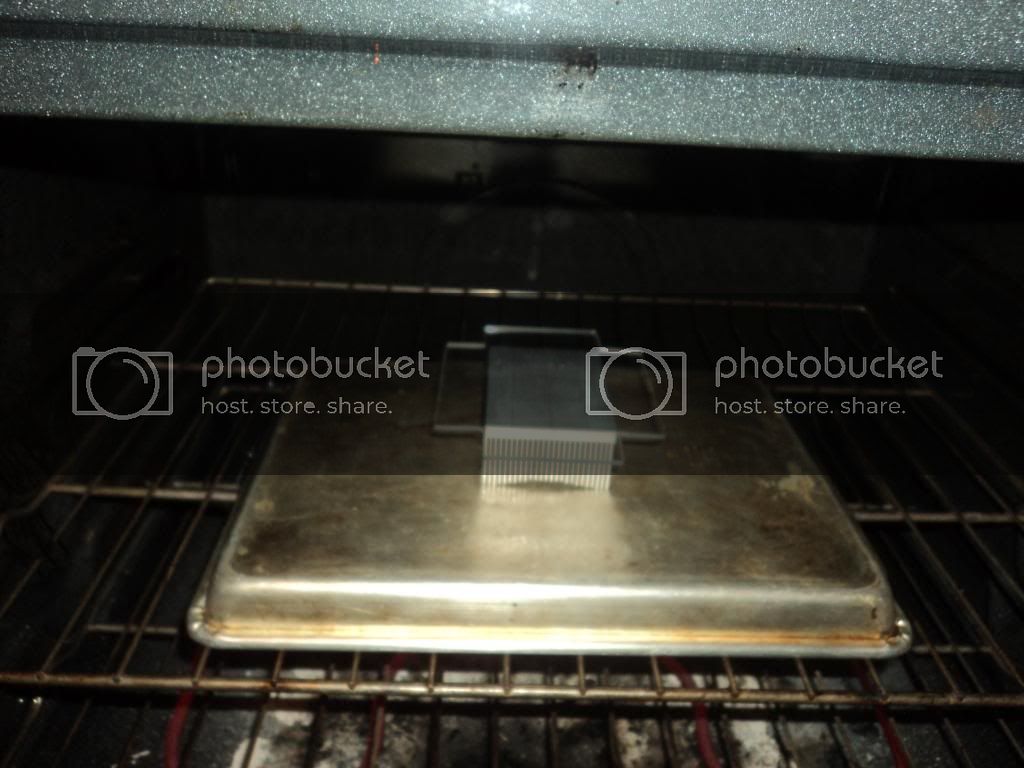

    I built spash guards for them by putting the acrylic in the oven on a heatsink I got to build a second set of scrubber lights for the 75 and let it get soft then bent them with a form I made. They fit on the heatsink tight enough that they do not need screws to hold them thankfully.

    [​IMG]


    [​IMG]


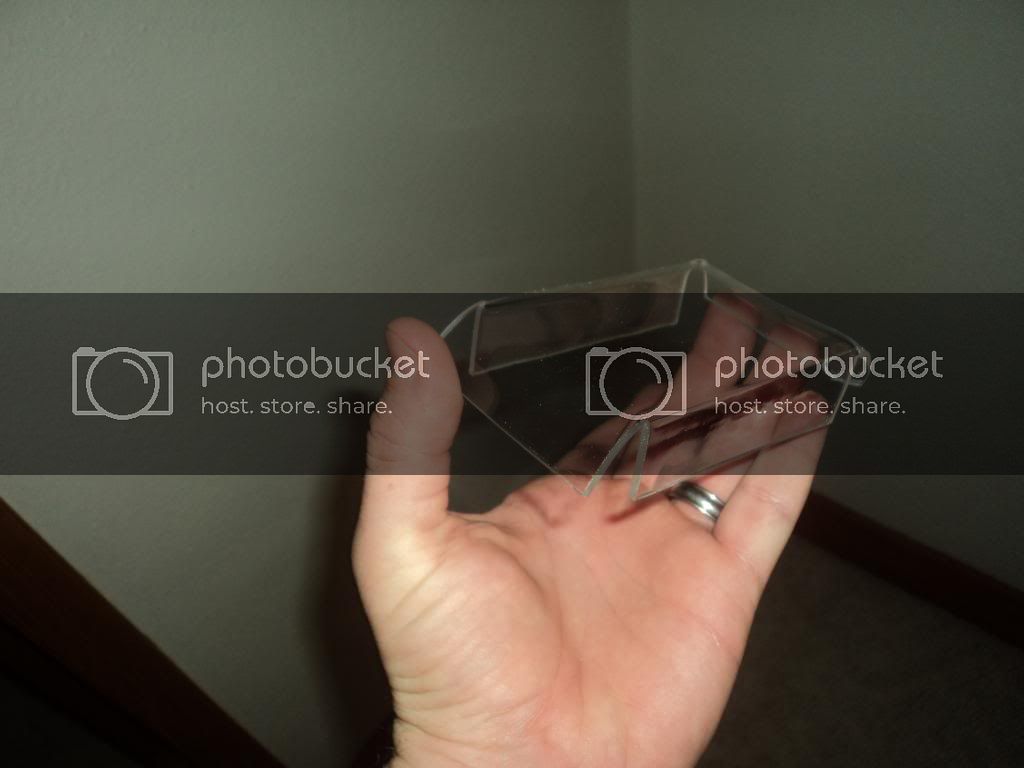

    After bending.

    [​IMG]




  14. this is awesome i think it might be in my future lol
