Frag Tank Build

Discussion in 'General Discussion' started by PotRoast, Feb 27, 2012.

  1. PotRoast

    PotRoast Well-Known ReefKeeper

    999
    Ratings:
    +24 / 0 / -0
    I recently upgraded my frag tank to a bigger one, made by one of our resident acrylic fabricators, Bud. (Floyd Turbo)

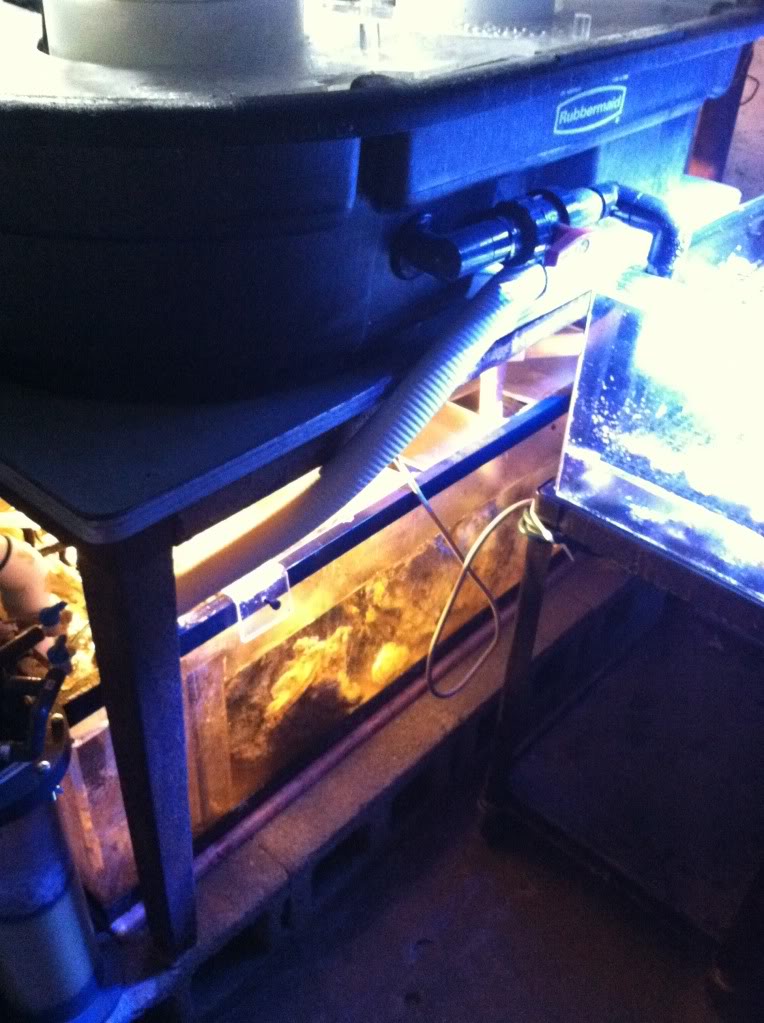

    Here is a picture of my old frag tank (and fishroom) setup.
    [​IMG]

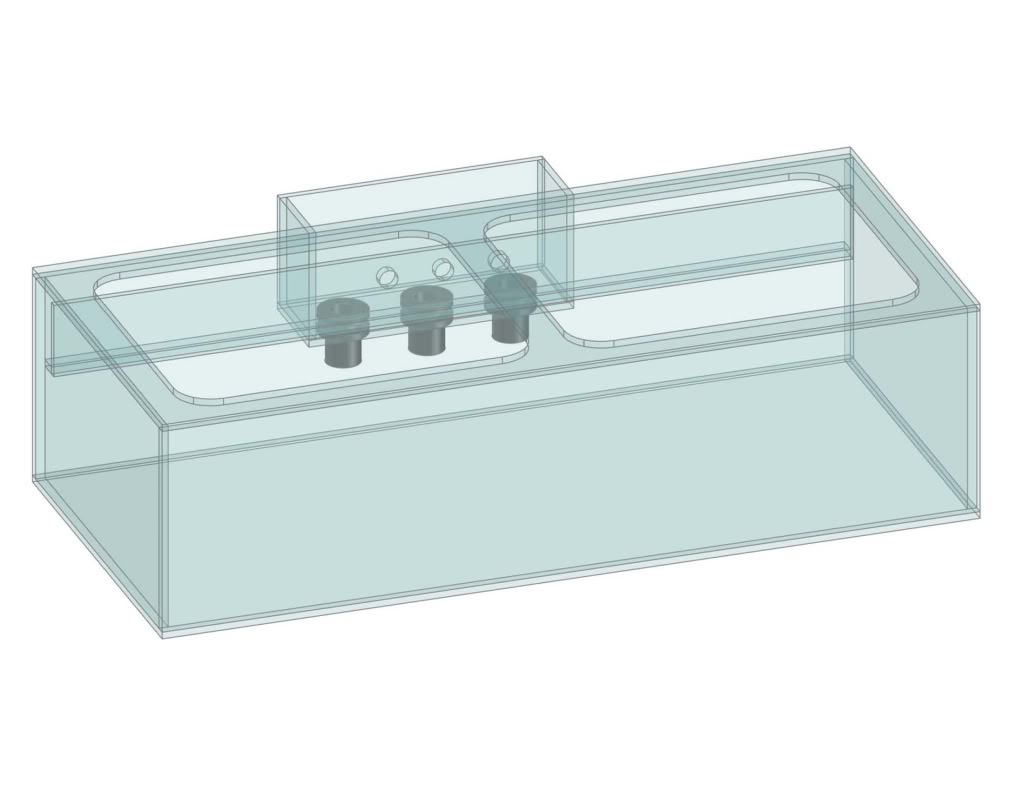

    Here is the new tank sketch up.
    [​IMG]

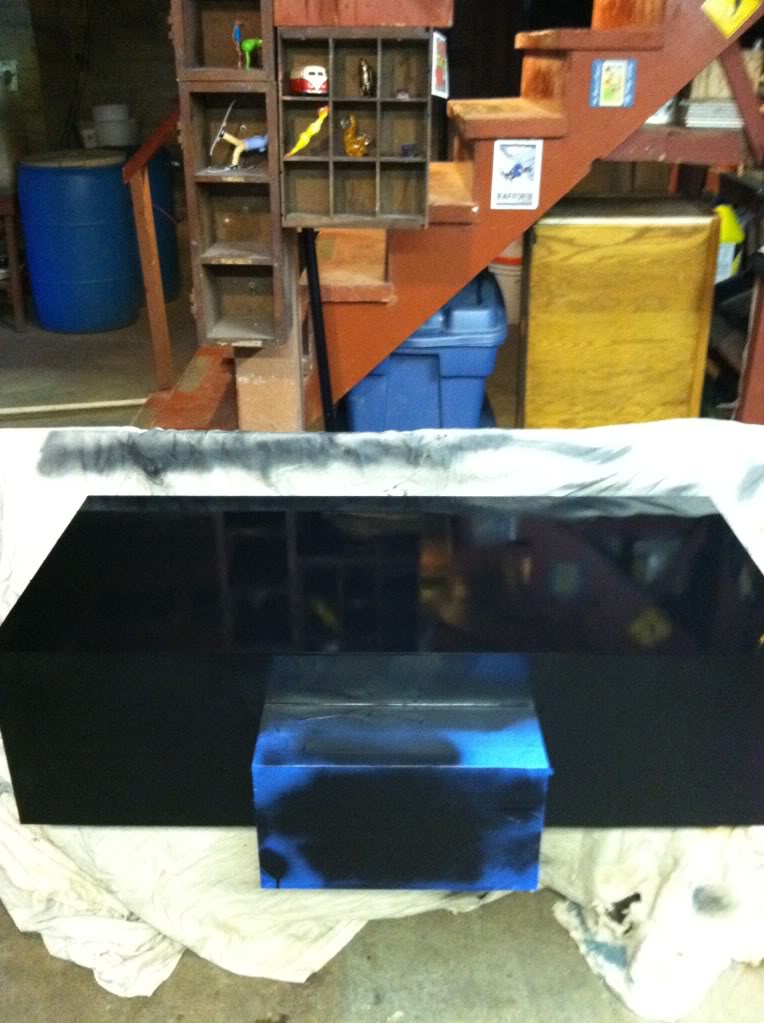

    First thing I did was paint the back and bottom with Krylon Fusion spray paint. The back is a satin finish and the back is a gloss. I ran out of paint and satin wasn't available. No big deal to me.[​IMG]

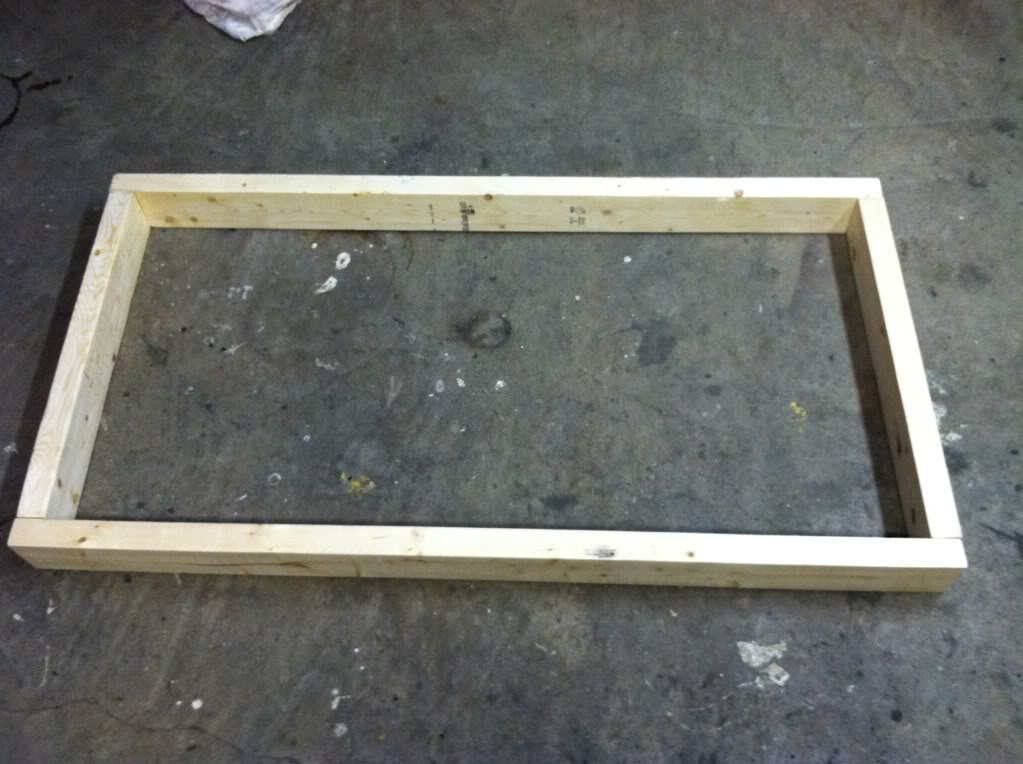

    Then I started building a stand for it. Here is the bottom panel.

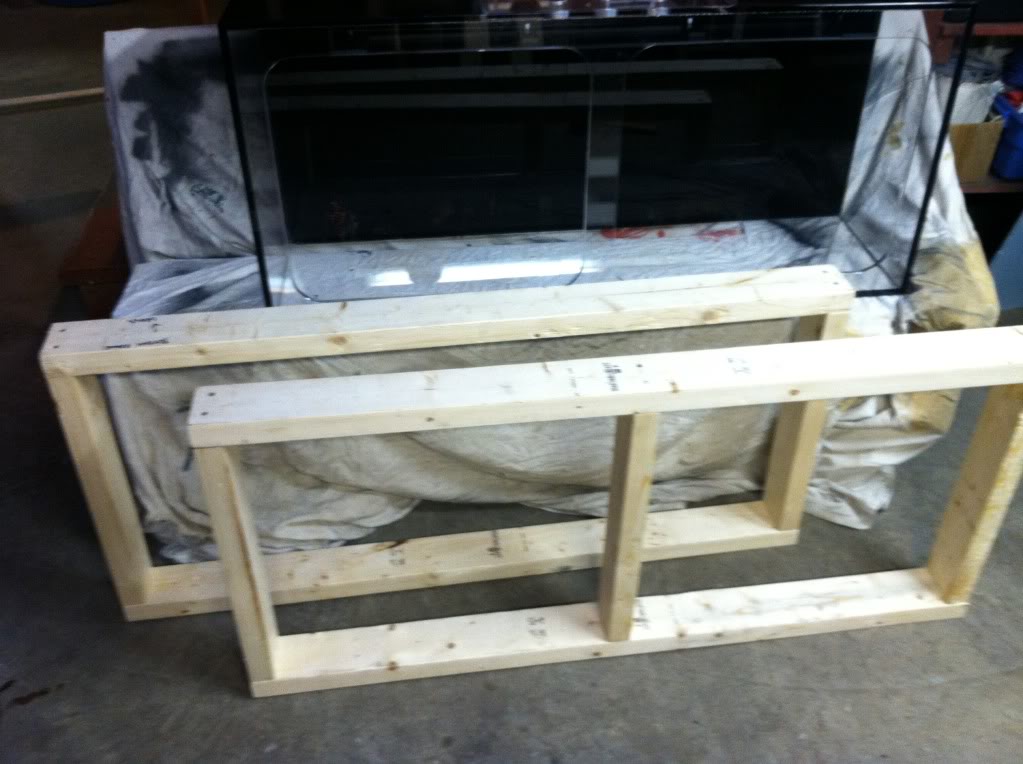

    [​IMG]

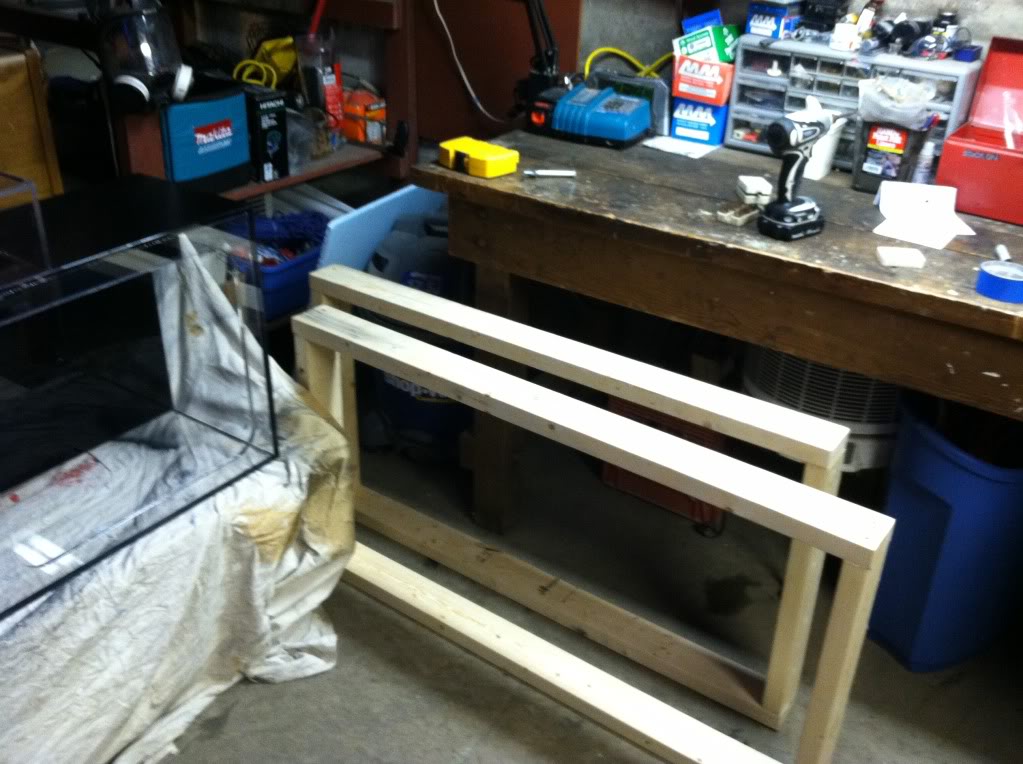

    Two frames done, top and bottom.[​IMG]

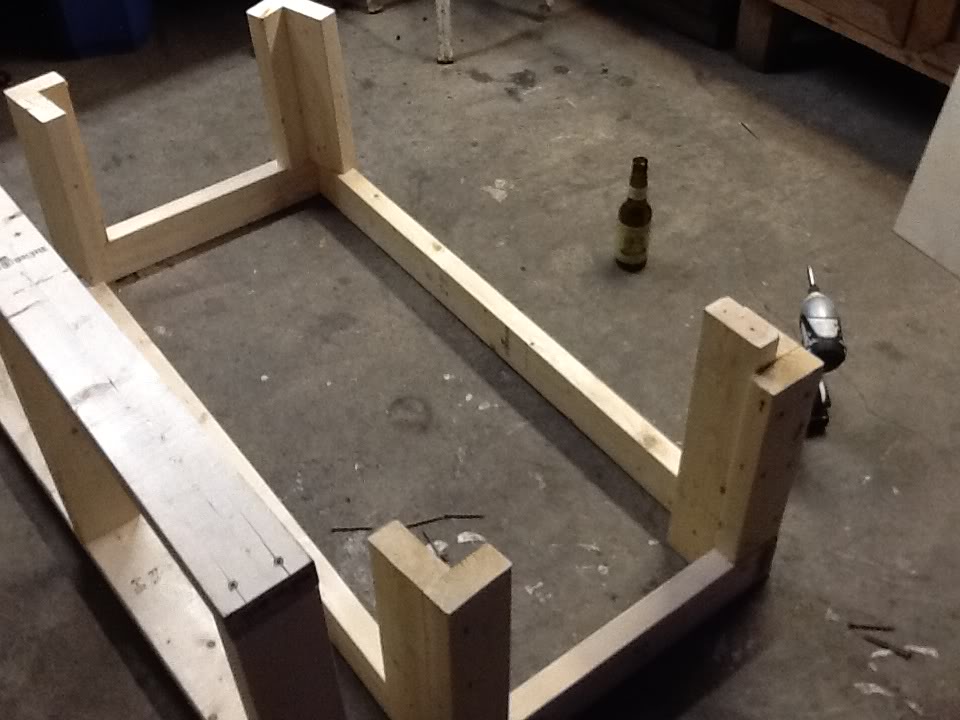

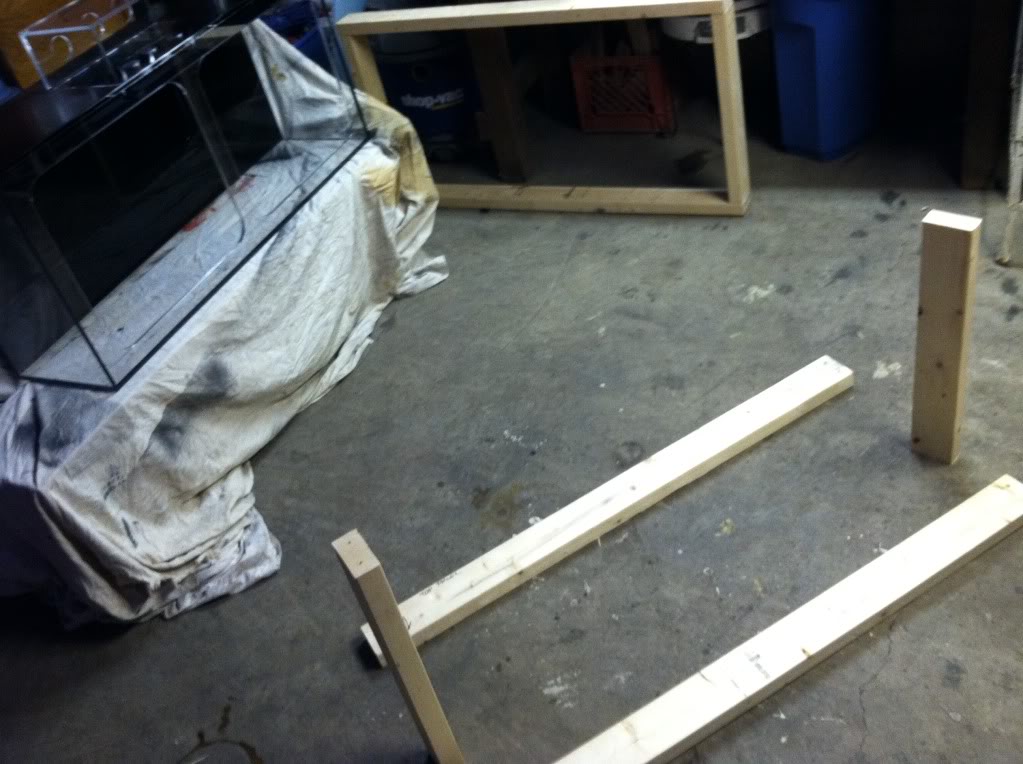

    Crap. I used the wrong pieces of wood. I am such a dumbass. Time to take everything apart![​IMG]
    Ok so time to drink a beer and gather my thoughts and get this right.[​IMG]

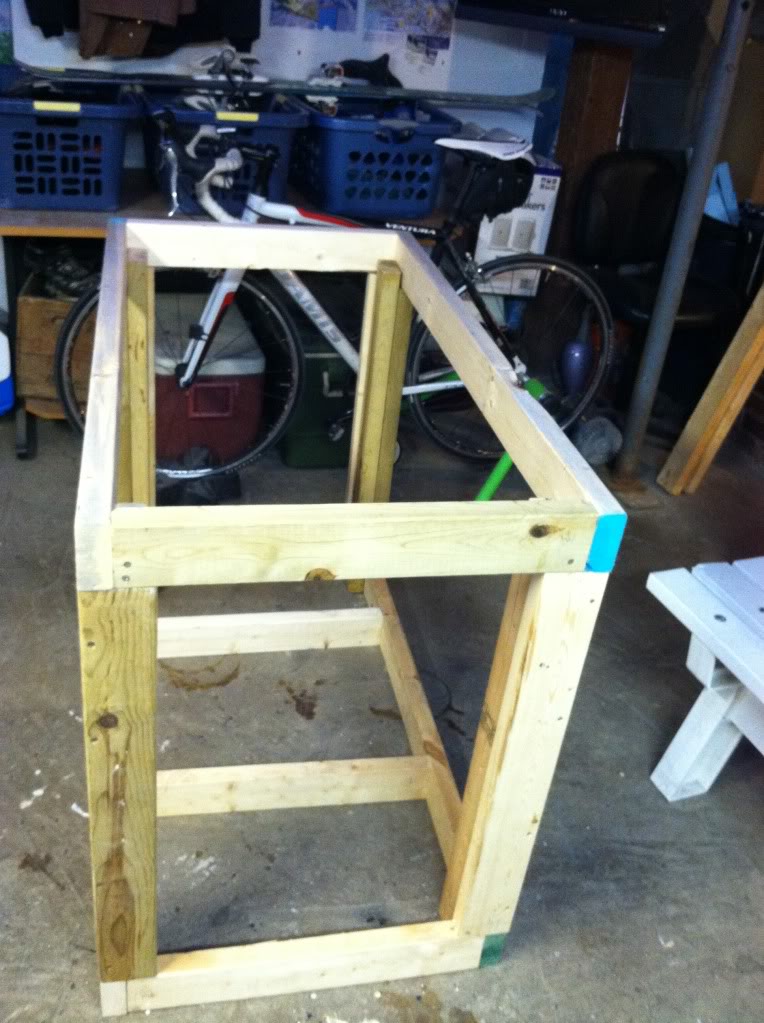

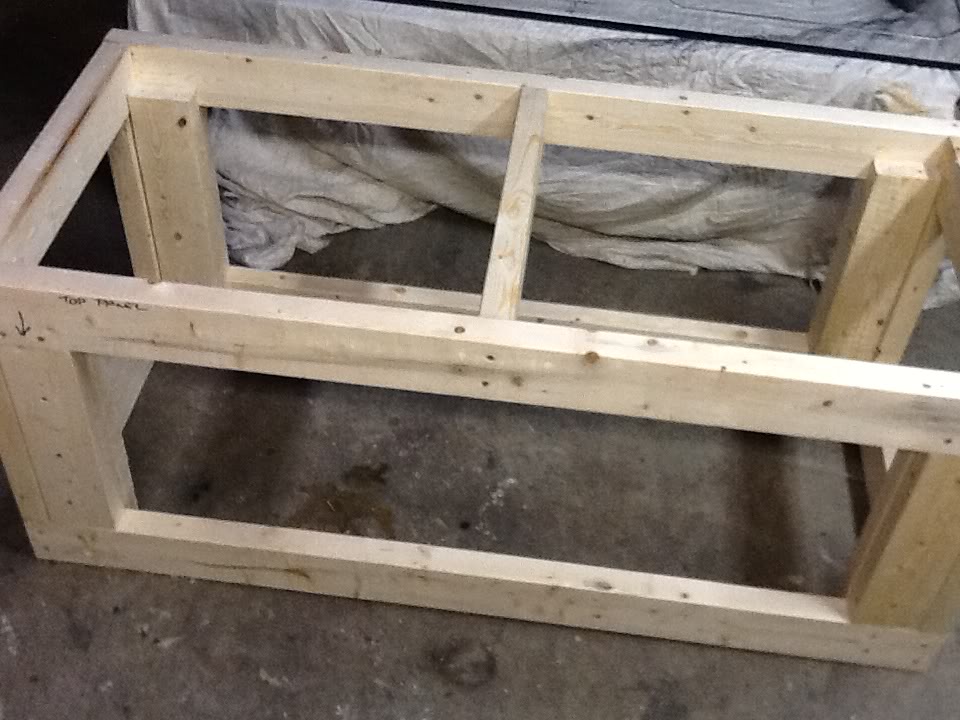

    OK with that done time to build the rest of it.[​IMG]
    That beer really helped. Keep working......
    [​IMG]
    More to come as I keep building.

  2. Reeferforlyfe

    Reeferforlyfe Inactive User

    655
    Ratings:
    +0 / 0 / -0
    Nice setup man. Can't wait to see it in person Jim!

  3. mfisher

    mfisher

    255
    Ratings:
    +0 / 0 / -0
    What is hammerhead doing to Kermit! Lmao... Jackie and i chuckled about that after we left last week. My favorite star wars character ever actually.

  4. slovan

    slovan Experienced Reefkeeper

    Ratings:
    +0 / 0 / -0
    Very cool, thanks for sharing the pics! Your stand is way overbuilt but I like it! So how many gallons is the new frag tank? Is it going to be connected to your main system or will this be a stand alone system?

  5. Bud Loves Bacon Website Team Board of Directors Leadership Team GIRS Member Vendor

    West Des Moines, IA
    Ratings:
    +1,821 / 14 / -0
    Glad to see the build coming along! Just a comment on the stand, you will want to top that with at least one layer of 3/4" ACS plywood (that's the stuff with the orange stripes on the end, usually labelled 23/32" or something odd like that), preferably 2 layers, and you should be able to set the tank directly on that if it's flat and level (depends on the straightness of the top frame of the stand). If it's off, you probably want a piece of 1/2" foam insulation board. There's a fair amount of debate about the need for that, if you ask James Steele of Envision Acrylics he says no on the foam, just doubled up plywood and call it good, but that's usually over a square tube steel frame stand for the big tanks. The point is if the plywood is flat you're all good.

  6. PotRoast

    PotRoast Well-Known ReefKeeper

    999
    Ratings:
    +24 / 0 / -0

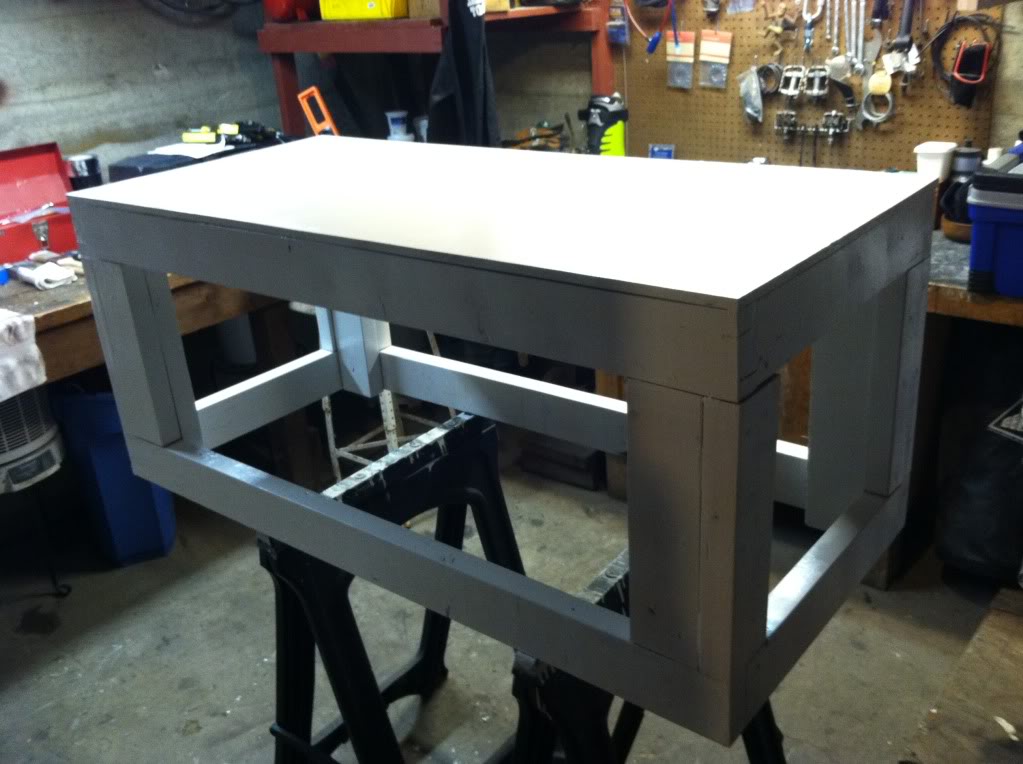

    The top is down and the first coat of marine primer is on. That paint stinks! I should have ventilated better....I painted it in my basement and now my entire house smells like crap.
    [​IMG]

  7. PotRoast

    PotRoast Well-Known ReefKeeper

    999
    Ratings:
    +24 / 0 / -0
    Hammerhead is anal raping Kermit. My girlfriend can have a sick sense of humor!

  8. PotRoast

    PotRoast Well-Known ReefKeeper

    999
    Ratings:
    +24 / 0 / -0
    Yeah it is way overbuilt but I learned it from you!  Ha ha 2x4's are so easy to come by...so there you have it.
    I don't know how many gallons it is...I think around 40. I am going to tie it into my main system. I still have to put wheels on it and paint it blue.

  9. Wytebal New User

    3
    North Liberty
    Ratings:
    +0 / 0 / -0
    What are you using for lighting over your current frag tank?  Will you be upgrading/adding additional lighting for the new frag tank?

  10. PotRoast

    PotRoast Well-Known ReefKeeper

    999
    Ratings:
    +24 / 0 / -0
    That is an AI SOl Blue and I will be adding another one.

  11. PotRoast

    PotRoast Well-Known ReefKeeper

    999
    Ratings:
    +24 / 0 / -0

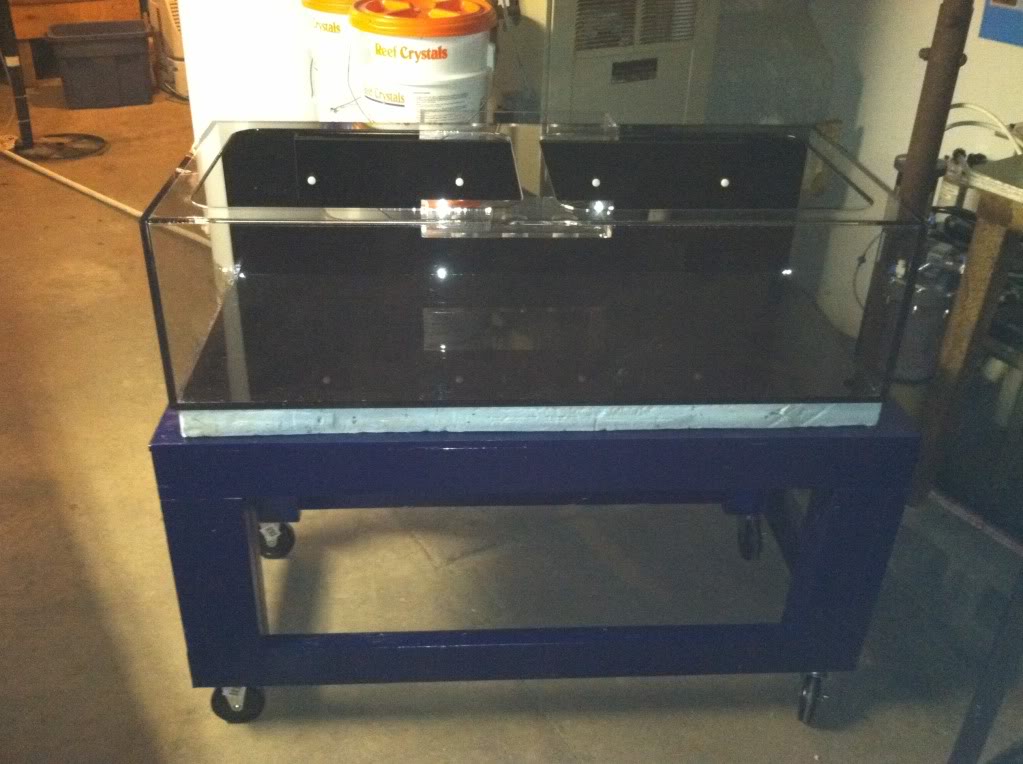

    Got the blue marine paint on (three coats) and added the wheels. I had some 3" foam board that is under the tank but it is too thick and I am going to get some thinner stuff.
    [​IMG]

  12. Bud Loves Bacon Website Team Board of Directors Leadership Team GIRS Member Vendor

    West Des Moines, IA
    Ratings:
    +1,821 / 14 / -0
    yeah that's some monster foam!! You want it right to the edge of the bottom of the tank anyways, looks like that one is a little short.

  13. AJ

    AJ Inactive User

    Ratings:
    +0 / 0 / -0
    Looks great Jim!

    --AJ

  14. PotRoast

    PotRoast Well-Known ReefKeeper

    999
    Ratings:
    +24 / 0 / -0
    I knew the footprint of my entire filtration/frag system was going to increase, but once I got down to brass tacks I wasn't happy at all with how much space the system was using. I explored a lot of different ideas......and decided in the end to build a new stand to hold my sumps. The new stand will offer a smaller footprint and also move the sumps closer to the wall. The new stand will also be taller, and my new frag tank will be able to slip underneath it all nice and tight.

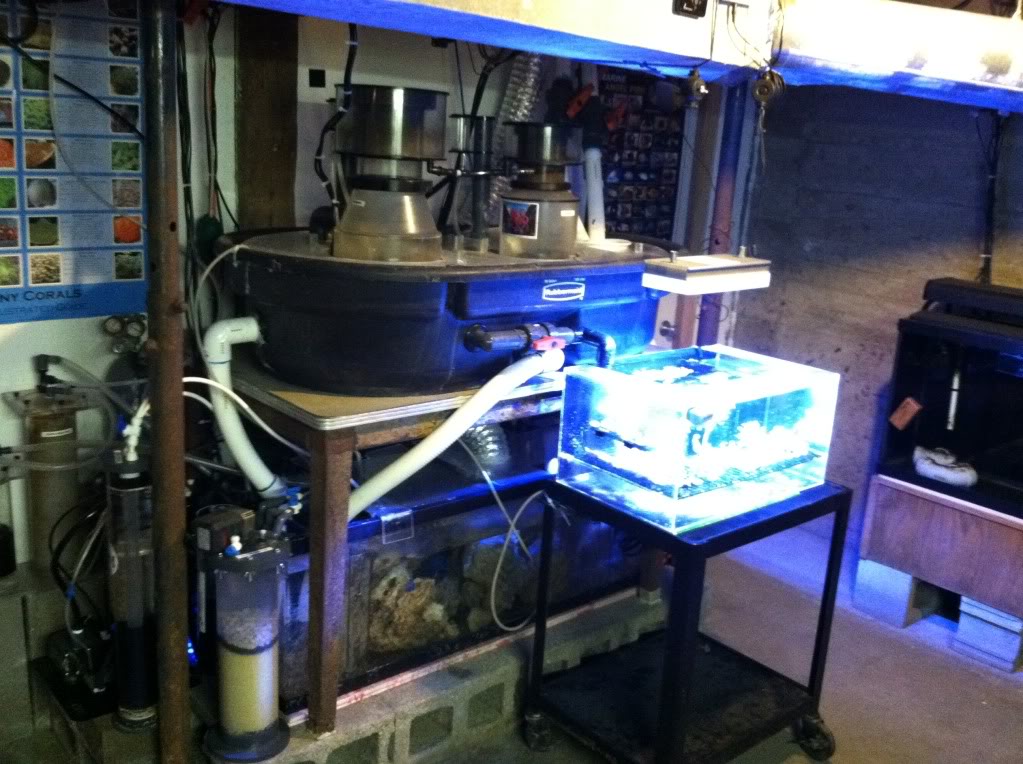

    Here is the current table and frag tank that I am replacing. You can see that the legs are rusting pretty bad.





    [​IMG]





    Here is the start of the new stand, built entirely out of scrap. (I know I know enough with the stand pics!)




    I wish I would have just bought new straight boards because about half of them were twisted slightly and the whole stand took about 40 more screws than it should of!





    [​IMG]











  15. Bud Loves Bacon Website Team Board of Directors Leadership Team GIRS Member Vendor

    West Des Moines, IA
    Ratings:
    +1,821 / 14 / -0
    Very nice use of the RC Rocket Engineer stand building technique! That design is solid.

  16. PotRoast

    PotRoast Well-Known ReefKeeper

    999
    Ratings:
    +24 / 0 / -0
    The sump stand is done! Menards didn't have marine blue paint so I went with the marine grey. As you can see, it is now covered in completely clean reactors! As things go in this hobby, one thing leads to the next and the next thing you know it is three days later. In this case, I have to remove the rubbermaid and sump (and old table) to move the new stand in place. I had to clear out my reactors to do this. So I cleaned them top to bottom, and replaced all the media. It took like three hours and three beers to get it done. I still have to actually move the sumps next and I am sure that will involve a through cleaning, including probes (and recalibrations!)
    [​IMG]

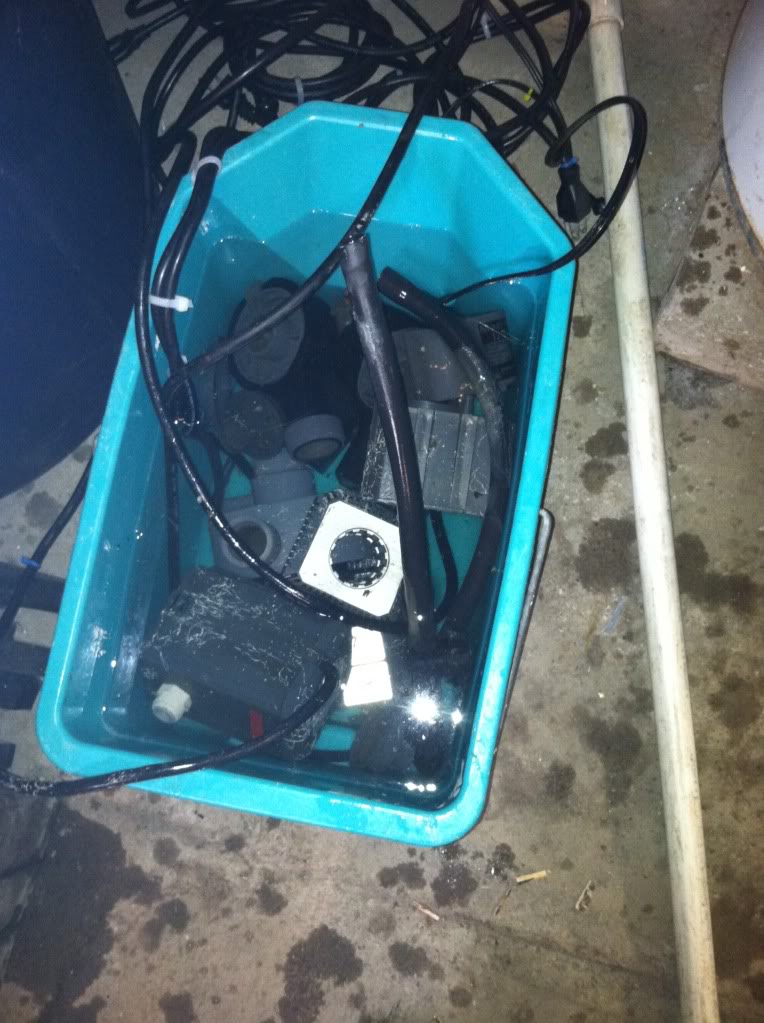

    Here are all the pumps bathing in a vinegar bath.
    [​IMG]

  17. PotRoast

    PotRoast Well-Known ReefKeeper

    999
    Ratings:
    +24 / 0 / -0

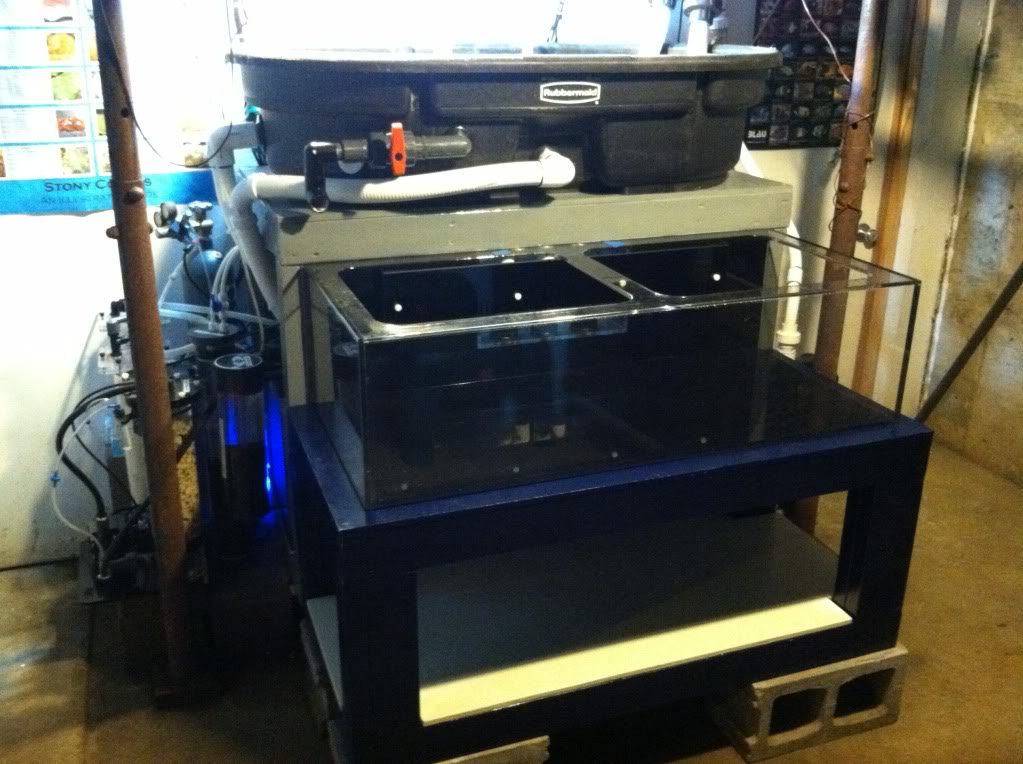

    Here is an update. I moved the frag tank in place and of course I totally measured wrong and it didn't fit. I forgot to allow for the plumbing coming off the bottom of the overflow box. So luckily I solved the issue by removing the wheels and adding cement blocks (which I need because my basement floods). A couple tweaks here and there and the tank fit perfectly!
    [​IMG]
    It may not seem like much but I added two stands, compressed my reactor center on the left side, and also shunk my total footprint by about 1 foot all the way around. Again, that may not seem like a big deal but it is to me!

  18. PotRoast

    PotRoast Well-Known ReefKeeper

    999
    Ratings:
    +24 / 0 / -0
    I still have a few more things to do. Fix the plumbing on the rubbermaid and drop some plumbing from the frag tank to the sump behind it. And add the lights.

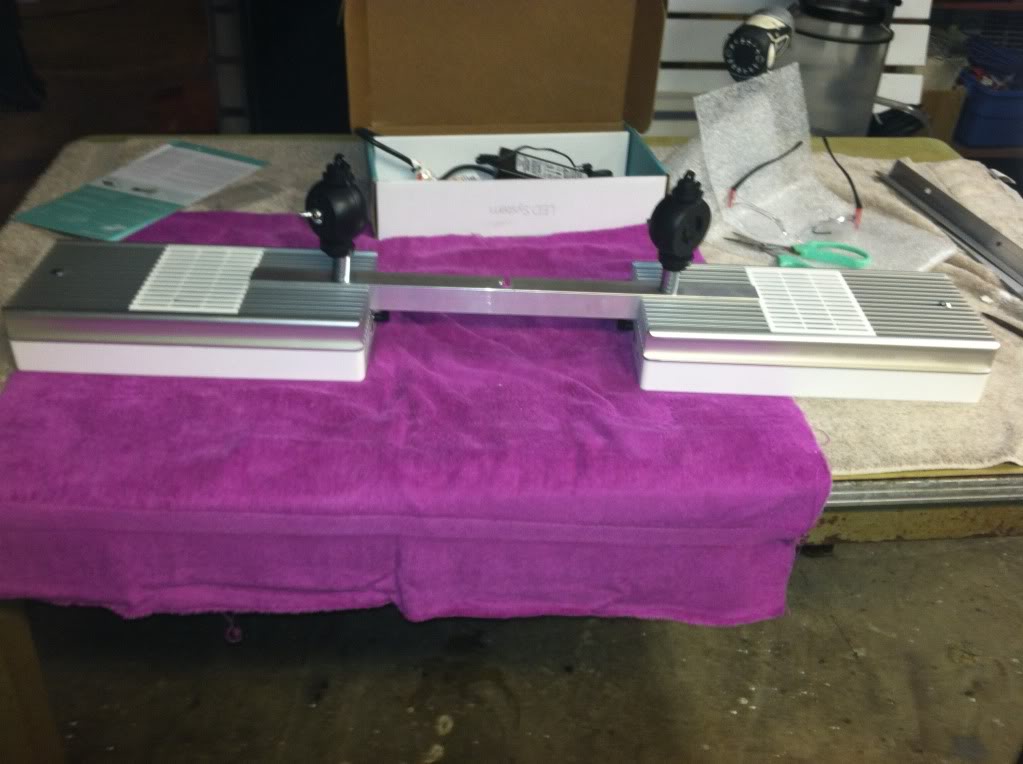

    Here is my AI SOL light bar that I made.





    [​IMG]





    It is a piece of angled stainless steel. I slid it into the heatsinks. It rides almost flush. I also used two collets to hide the screw bolts, and you also see two light yo-yo's...they are a reatractable light hanging device.





    [​IMG]





    Here is a top view of the underside of the rail. The cables (power, controller, data) will all be compressed and shielded from view by the rail. I used the data cable as an example. It is hard to see but I also made a hole in the center of the bar for the controller cable and power brick cables. They will all be ziptied together and run straight up. It is the best solution I can think of. AI lights are kinda tricky since they have so many cables and you have to hook them all together. When they eventually come out with their wireless modules this problem will be solved but still.

  19. Bud Loves Bacon Website Team Board of Directors Leadership Team GIRS Member Vendor

    West Des Moines, IA
    Ratings:
    +1,821 / 14 / -0
    Bummer on the measurements. What are you going to do when you need to get into the sump now?

  20. Bud Loves Bacon Website Team Board of Directors Leadership Team GIRS Member Vendor

    West Des Moines, IA
    Ratings:
    +1,821 / 14 / -0
    Wow, are those SOLs for the frag tank? That's gonna look awesome.
