White LEDs won`t turn on fully!

Discussion in 'General Discussion' started by erayk1, Oct 19, 2012.

  1. Oct 19, 2012 #1
    erayk1 Coralville, IA

    erayk1 Well-Known ReefKeeper Board of Directors Leadership Team GIRS Member

    981
    Coralville, IA
    Ratings:
    +35 / 0 / -0

    So yesterday I noticed my middle panel of leds (whites only) were not working... The white lights are barely on like in their minimum dimmed setting. All three panels are hooked to the same dimming wire and then into an apex. I checked all the wires and nothing has come loose. Next thing I am going to do is check each led with a battery to see if they get any brighter. All I can think of right now is that my ballast is the problem.

    I will take any ideas/suggestions!

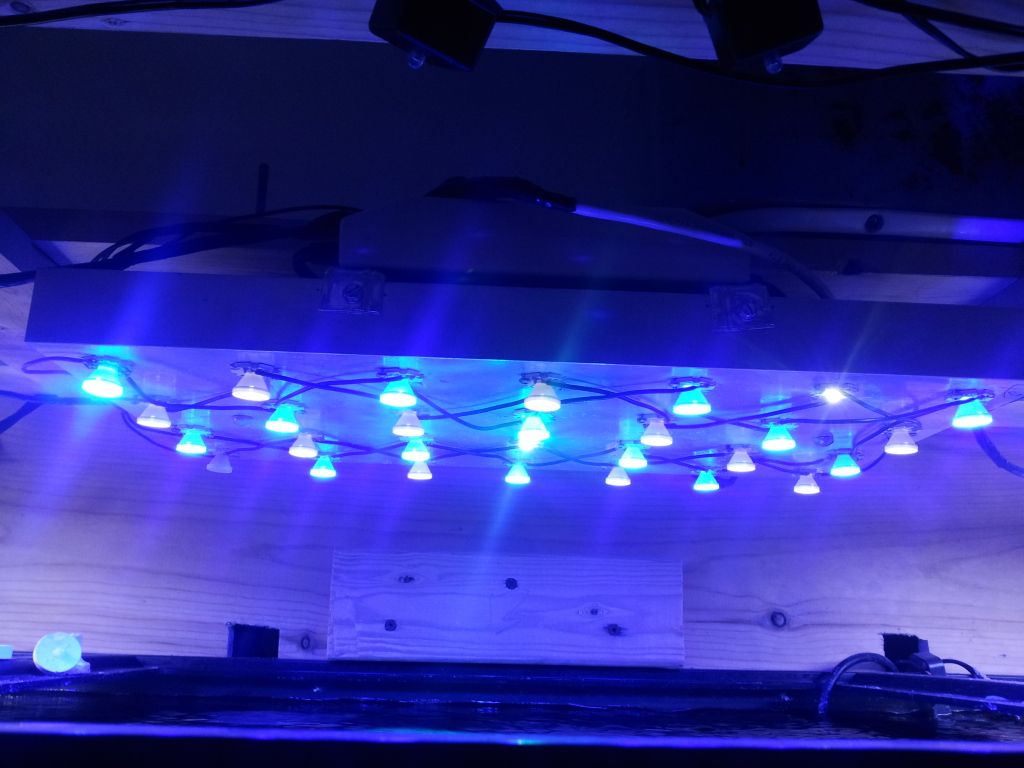

    i163.photobucket.com/albums/t312/er...180630.jpg



    i163.photobucket.com/albums/t312/er...180640.jpg



    s163.photobucket.com/albums/t312/erayk1/



    s163.photobucket.com/albums/t312/erayk1/



    s163.photobucket.com/albums/t312/erayk1/



    Sorry for the crude videos but they show how the lights react when "fully" powered, then a comparison between the others, when the dimming wire is unplugged and finally when the ballast discharge completely.



    Thanks everyone!

  2. Oct 19, 2012 #2
    erayk1 Coralville, IA

    erayk1 Well-Known ReefKeeper Board of Directors Leadership Team GIRS Member

    981
    Coralville, IA
    Ratings:
    +35 / 0 / -0
    I've now tried resetting the Apex and all power to my lighting system. No new results....

    Anyone?

  3. Oct 19, 2012 #3
    ICreefNoob

    ICreefNoob

    58
    Ratings:
    +1 / 1 / -0
    If you have a multimeter handy you could check the voltage and current coming out of the drivers. Depending on how you are setup you could also try swapping two of the drivers to determine if it is a faulty LED strand or a faulty driver.

  4. Oct 19, 2012 #4
    B-Rad

    B-Rad Inactive User

    999
    Ratings:
    +0 / 0 / -0
    I would try to swap the drivers and see if the problem follows the suspected driver. If your LEDs are lit at all then the LEDs are ok as they ether work or they don't.
